RedRat-X

INFRARED & RF REMOTE CONTROL AUTOMATION

A compact USB/Network device supporting both infrared remote control and Bluetooth/RF4CE remote control with the addition of one of our RF modules

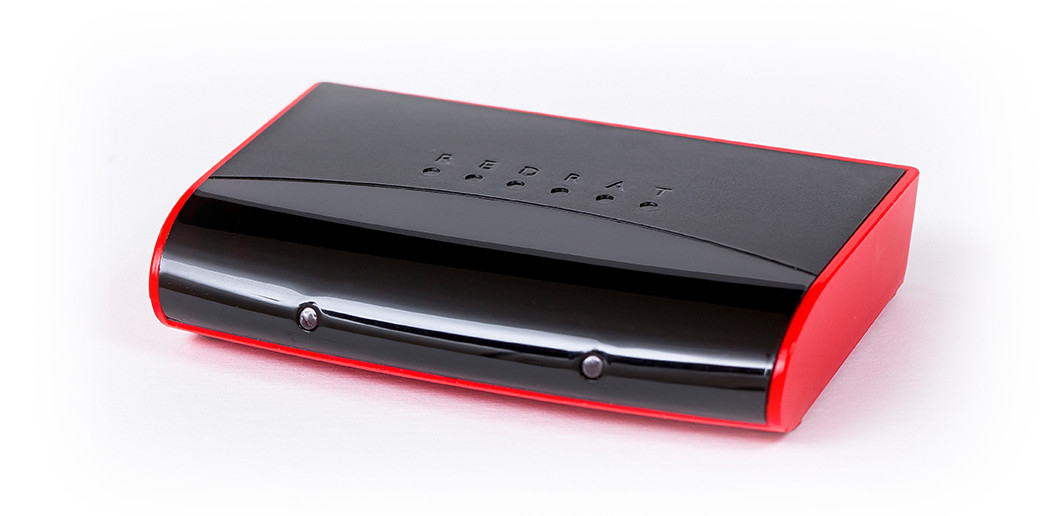

RedRat-X

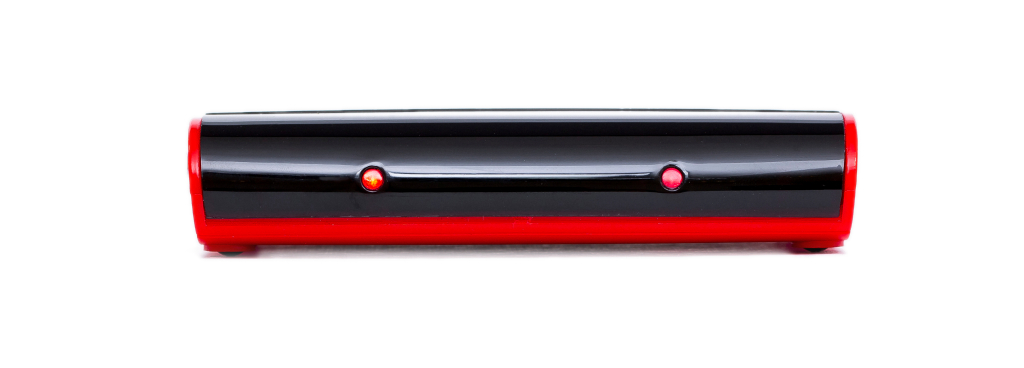

Front

RedRat-X-Front-Profile

  • Multicolour indicator/feedback LEDs
  • High Powered IR Blaster
  • Curved gloss black façade

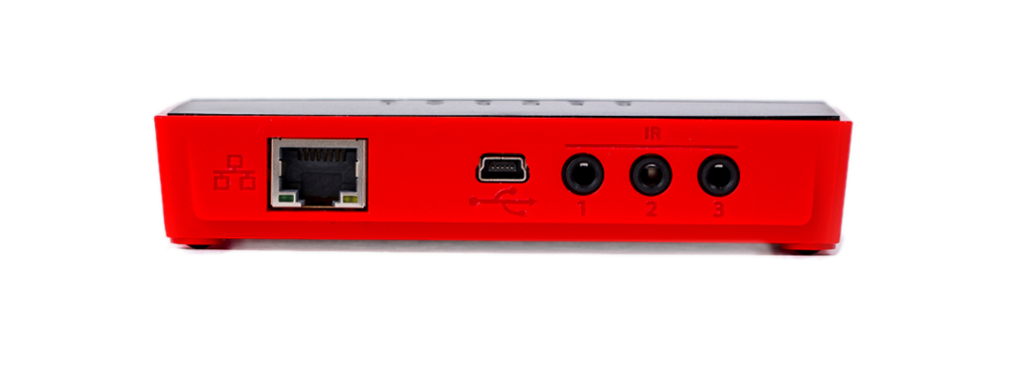

Rear

  • USB Connection (power & comms)
  • Ethernet Socket
  • 3 independently controllable IR ports


Bluetooth & RF4CE

USING ADD-ON MODULES

Optional add-on module - providing either Bluetooth or RF4CE functionality.

Easy installation - just slot into the unit as shown in the adjacent image.

Future-proof technology - with the right configuration, the module allows the RedRat-X to act as Bluetooth/RF4CE remote control.

Please contact RedRat first to ensure that your TV/STB is supported.

Learn more

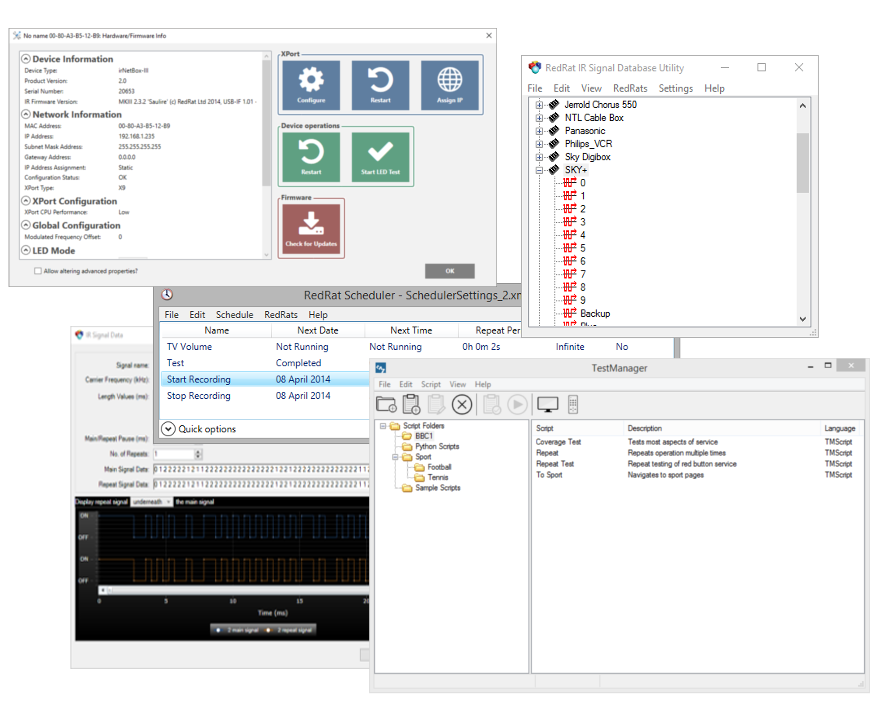

software-mosaic-image

Software

APPLICATIONS FOR THE REDRAT-X

Software that works

We provide a number of applications for device management, remote control data capture, automation and running test procedures.

Straightforward Integration

We have made it possible for the RedRat-X to work with your own software using our SDK or APIs.

Learn more

Specifications

  • w x h x d: 11.5cm x 2.5cm x 7.5cm
  • Powerful IR blaster via the front of the unit. 0mA to 250mA in 100 steps.
  • Three plug-in IR jack sockets which can be used in two modes:
    • Current mode (default): For use with plug-in IR flashers - 0mA to 100mA in 100 steps.
    • Voltage mode: To interface to IR distributions systems, such as Xantech, Buffalo etc.
  • Controllable via USB or Ethernet connection.
  • Multicolour indicator LEDs provide operational feedback.
  • Powered via USB connection. We can supply a power-supply if needed.
  • Less that 2W power consumption in normal operation.
