RF Modules

MODULES FOR EITHER BLUETOOTH (CLASSIC & LE) OR RF4CE

Using an RF module with the RedRat-X, it is possible to automate TV/STB control via RF protocols.

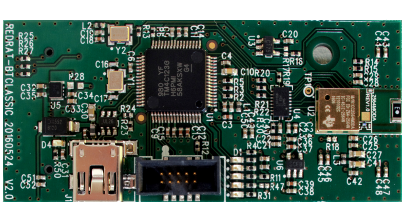

Bluetooth Module

BT-Module

  • Supports BT Classic and LE
  • BT serivces & profiles can be exposed to application software
  • Configuration set dynamically or stored on module

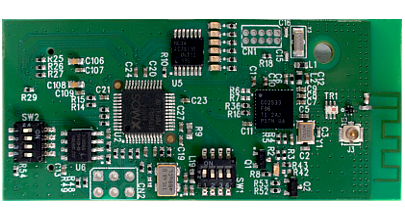

RF4CE Module

rf4ce-module

  • Supports multiple RF4CE profiles (firmware dependent)
  • Can operate at profile or RF4CE network layer
  • Generally able to control multiple STBs per module


Software

Applications for RF Modules

We provide two applications for development work using RedRat's RF modules:

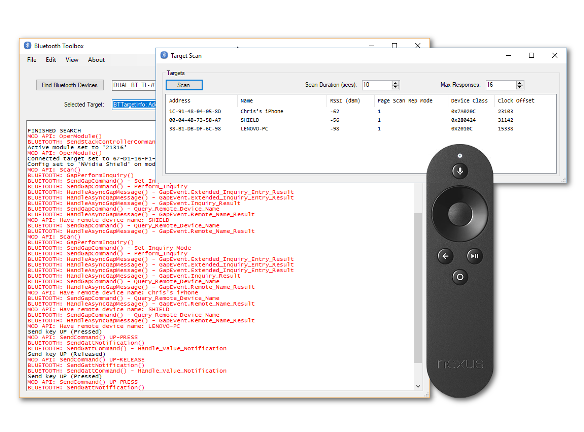

Bluetooth or RF4CE Toolbox

Windows GUI applications for experimentation with the module. They are designed to test the main elements of RF remote control functionality, such as discovery of STBs, pairing and connecting to them and then sending commands using an on-screen remote control.

Bluetooth or RF4CE Server

This is an HTTP REST API which provides the above functionality via HTTP API calls, making integration with third party applications and frameworks quite straightforward. It runs on both Windows (.NET) or Linux/Mac (Mono) and supports RF modules hosted in a RedRat-X via either USB or LAN.

software-mosaic-image

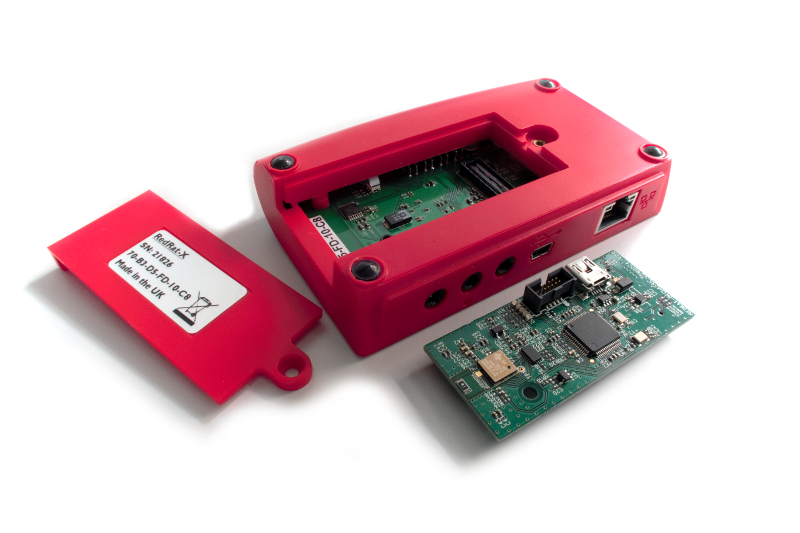

module-with-x

RedRat-X

Designed to work with the RedRat-X - providing either Bluetooth or RF4CE functionality.

Future-proof technology - with the right configuration, the module allows the RedRat-X to act as Bluetooth/RF4CE remote control.

Use with your existing RedRat-X - easily installed by slotting into the available socket or order an X with a module already fitted.

Please contact RedRat first to ensure that your TV/STB is supported (see below).

RedRat-X details

Background Information

Please contact us at info@redrat.co.uk if you have a project requiring TV/STB control via Bluetooth or RF4CE.

The use of RF protocols is significantly more complex than traditional infrared (IR) remote control, often requiring custom engineering work to create the correct configuration and particular behaviour for a given TV or STB.

As a result, we only sell RF modules as part of a project which includes experimentation with your particular TV or STB, then development of any custom firmware/software and lastly deployment support.
