Products RedRat Pico

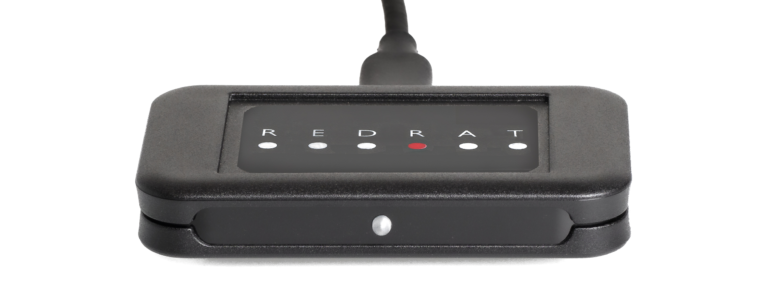

The RedRat Pico

UNIVERSAL USB INFRARED BLASTER

A simple but powerful IR blaster based on our many years of remote control technical experience.


software-mosaic-image

Software

APPLICATIONS FOR THE REDRAT PICO

Software that works

We provide a number of applications for device management, remote control data capture, automation and running test procedures.

Backwards Compatible

IR data from older RedRat devices can be used with the RedRat Pico.

Straightforward Integration

We have made it possible for the RedRat Pico to work with your own software using our SDK or APIs.


Specifications

  • w x h x d: 8.2cm x 1.5cm x 5.1cm
  • Powerful multidirectional IR blaster via the front and sides of the unit. 0mA to 240mA in 100 steps
  • Controlled via USB with drivers for Windows, Linux and Mac
  • Multicolour front indicator LED provides operational feedback
  • Two IR detectors:
    • A wide-band IR detector for IR signal capture
    • A narrow band (38KHz) to support IR capture and for PC control applications
  • Very low power consumption - less that 0.2W in normal operation
  • Based on the Raspberry Pi RP2040 micrcontroller
  • Full CE compliance approval and meets FCC EMC standards

3D image of the ZigIR generated by the CAD package

Help and Documentation

Getting started with the RedRat Pico.
